Description
1, Light output is focused through small round holes, delivering strong directivity, ideal for accent lighting on walls, artworks, and decorative areas.

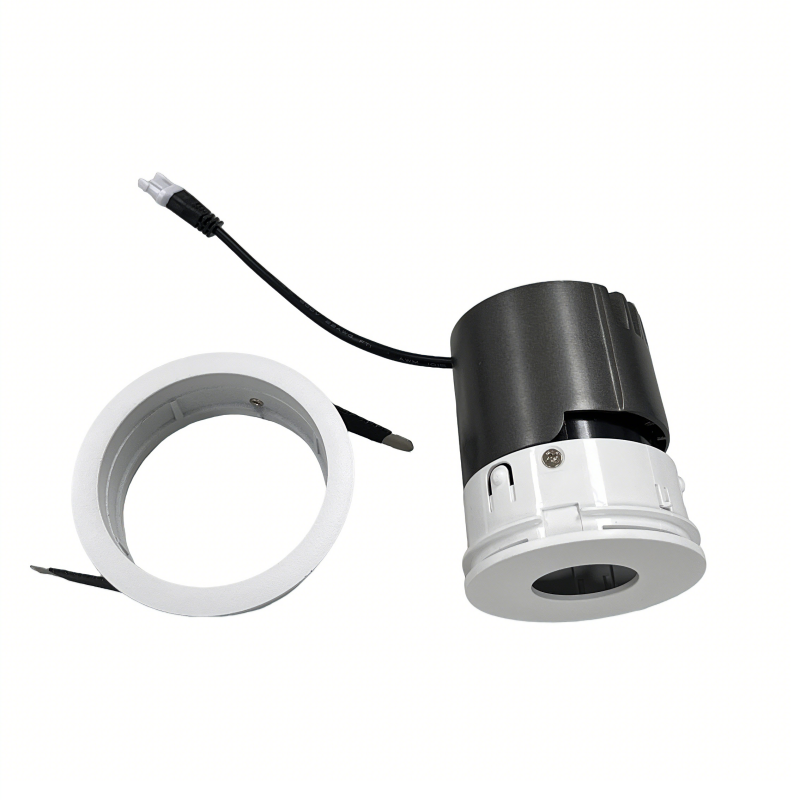

2, Retrofit design for easy installation, no need to replace the original fixture.
3, Adjustable lighting angle for flexible beam direction and targeted illumination.
4, Energy-saving, low power consumptin and high luminous efficiency.
5, Long lifespan, reducing maintenance and replacement frequency.
6, Flicker-free, soft and even light, comfortable for daily use.
7, Eco-friendly, no mercury or hazardous materials.
8, Conform CE, RoHS, FCC, SAA, PSE certifications.
Product Details:
| General data | General | Material | die-casting aluminum |
| Finish | white | ||
| Electrical | Light efficacy | 95 lm/w | |
| Input voltage | AC100-240V | ||
| Power factor (PF) | 3-6w (PF 0.6); >7w (PF 0.9) | ||
| Optical | CCT | 2700K/3000K/4000K/6000K | |
| Led type | CREE COB | ||
| CRI | >80/90 | ||
| Beam angle | 15°/24°/36°/50° | ||
| SDCM | <3 | ||
| Function | Control | Non-dim./ Triac Dim. / DALI dim./ 0-10V dim. | |
| Tilting angle | 30° | ||
| Rotating angle | 360° | ||
| Durability | IP grade | IP20 | |
| Operating Temperature | 一20°C ~ +40°C | ||
| Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3 years |
| Model | Power | Size(mm) | Model | Power | Size(mm) |
| WK-RE-C-XW | 3-6W | φ65*80mm open:55mm |
WK-RE-C-XW | 6-10W | φ85*85mm open:75mm |
| WK-RE-C-XW | 10-12W | φ85*100mm open:75mm |
