Description
Product Features:

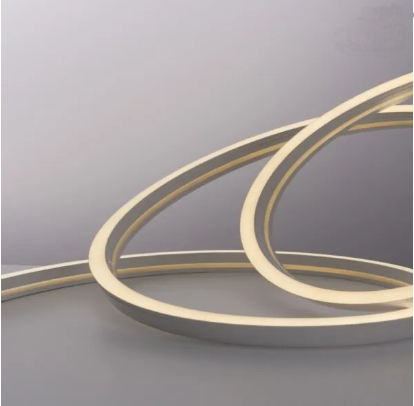

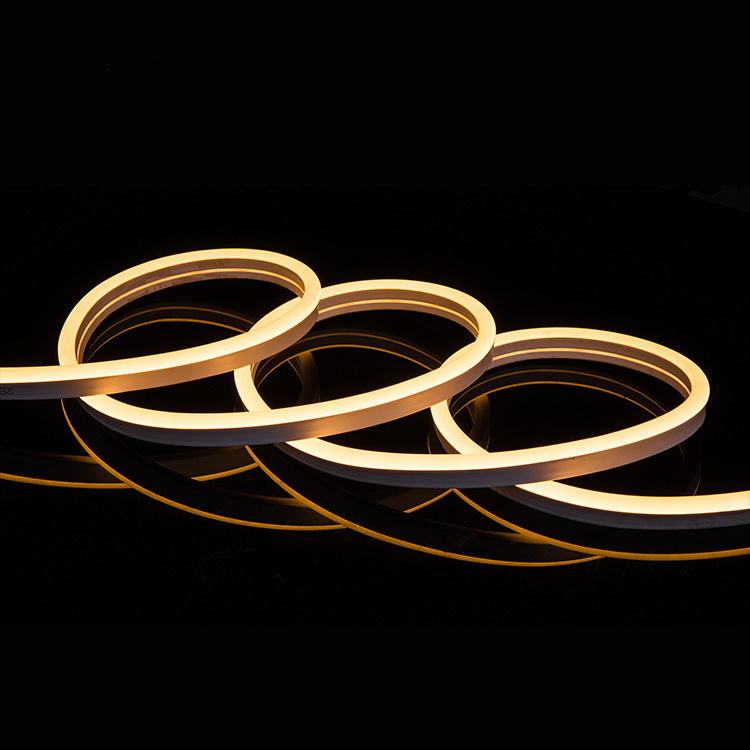

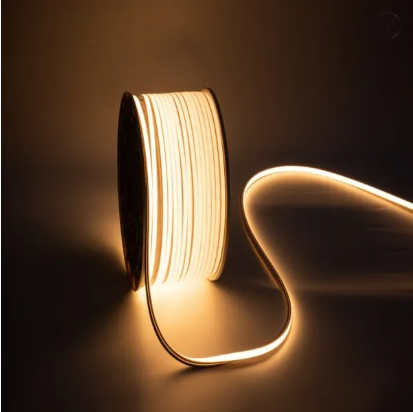

1, Top-Facing Light Emission: The LED chips are arranged to emit light vertically upward (90° from the strip’s surface), ensuring concentrated illumination toward the top space.
2, Silicone Encapsulation Advantages: Made of food-grade, high-transparency, IP67 waterproof protection, corrosion resistance, and UV resistance .
3, Structural Design: Flexible FR-4 is fully wrapped in silicone, resulting in a slim profile that balances flexibility and sturdiness. Minimum bending radius ≥10mm (single direction) allows adaptation to mild curves.
4, Optical Performance: Available in warm white, natural white , cool white , and RGB/RGBW variants. High CRI (Ra ≥80/90) . Beam angle: 120°–150°. high brightness and no dark spots.
5, Electrical Stability: Low voltage 12V/24V DC, effective power consumption , and high luminous flux .
6, Flicker-free : No video / mobile phone flicker. dimming (PWM ≥20kHz) supports brightness adjustment from 10% to 100%.
Product Details:
| Product details: | LED type | 2835 / 5050/ 3528/ 2216 smd; COB |
| Model number | WK-SPxx-xx | |
| Housing material | silicone | |
| Size | see [topview size list] | |
| Input voltage | DC 12V/24V | |
| LED qty | customizable | |
| Power Consumption | based on led qty | |
| Color temperature | R/G/B / 1800-7000K/ RGB/ RGBW… | |
| CRI (Ra) | > 80/90/95 | |
| Beam angle | 120° | |
| Lumens per watt | >90 lm/w | |
| IP grade | IP 67/68 |
Applications:
1, Home Ceiling Ambient Lighting: Installed in ceiling coves, cornices, or recessed channels to cast soft upward light, creating a spacious, warm atmosphere in living rooms, bedrooms, or hallways. Ideal for modern minimalist interiors.
2, Kitchen & Bathroom Lighting: Mounted under upper cabinets (top-facing to illuminate countertops) or along bathroom ceiling edges The uniform glow enhances visibility for cooking or grooming without glare.
3, Commercial Interior Design: Retail stores, restaurants/cafés , and hotels .
4, Architectural Decoration: Indoor/outdoor building cornices, eaves, or facade recesses to outline architectural contours at night. Suitable for malls, office buildings, or residential complexes.
5, Furniture & Custom Lighting: Bookcase top edges (illuminating upper shelves), bed headboard upper trim (soft night lighting), or display cabinets (highlighting collectibles with high CRI).
6, Outdoor Protected Areas: Patio ceilings, pergola edges, or porch overhangs to provide gentle upward lighting for outdoor gatherings without exposing LEDs to rain or dust.
