Description
Product Features and advantage:

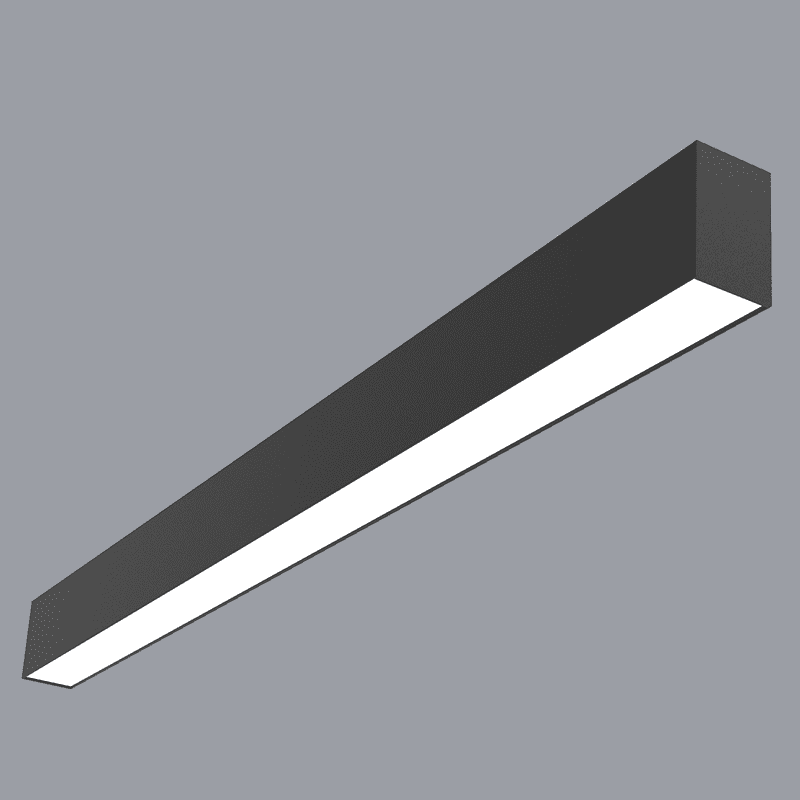

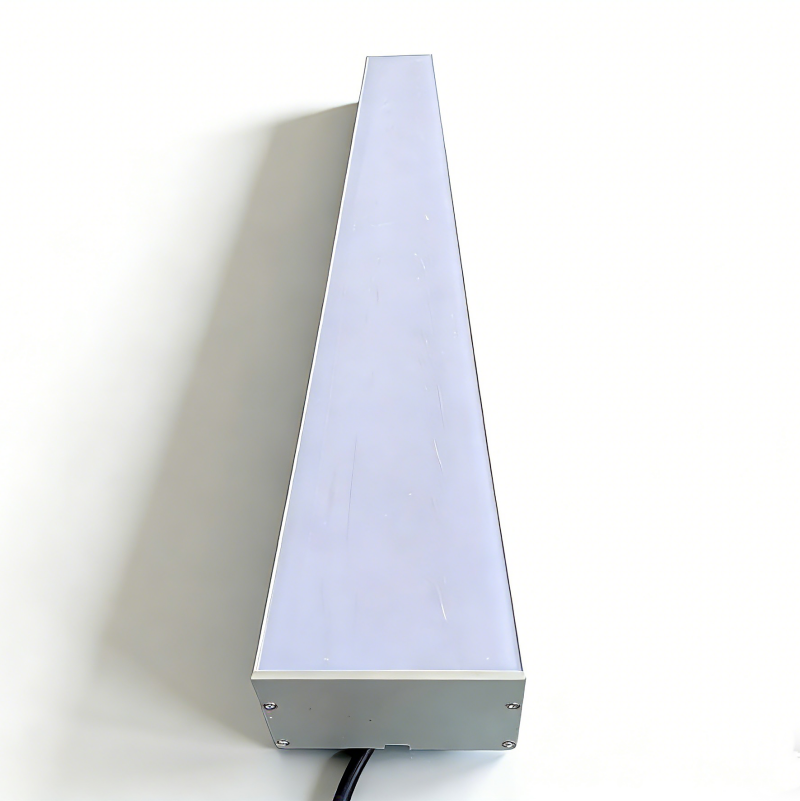

Suspended LED linear lights are sleek, modular lighting fixtures designed for surface suspension via cables or rods, ideal for commercial spaces like offices, retail stores, and exhibition halls.
1, Adjustable suspension height for flexible spatial adaptation.
2, Uniform, glare-free linear illumination
3, Customizable lengths, color temperatures (2700K–6500K) and dimming functions
4, Modular design with seamless splicing; aluminum housing for efficient heat dissipation
5, Space-saving, creates modern layered lighting effects
6, Easy maintenance with quick component replacement
7, Dual-purpose for functional lighting and decorative use in commercial spaces
Product Details:
| General data | General | Material | Aluminum Housing+PMMA Diffuser |
| Finish | white; black | ||
| Electrical | Light efficacy | 110lm/w; 130-150lm/w (optional) | |
| Input voltage | AC85-265V | ||
| Optical | CCT | 2700-6500K | |
| Led type | 2835 smd (SamSung) | ||
| CRI | >80/90 | ||
| Beam angle | 120° | ||
| SDCM | <3 | ||
| Function | Dimmable | No dimming/DALI ; 0/1-10V & Triac | |
| Other | emergency or sensor (per request) | ||
| Durability | IP grade | IP20 | |
| Operating Temperature | 一20°C ~ +40°C | ||
| Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3/5 years |
| Model | Power | Size(mm) |
| WK-TD5075-xx | customized | (W) 50*(H)75 mm |
| WK-TD6075-xx | (W) 60*(H)75 mm | |
| WK-TD8075-xx | (W) 80*(H)75 mm | |
| WK-TD-10075-XX | (W) 100*(H)75 mm | |
| WK-TD12070-XX | (W) 120*(H)70 mm | |
| WK-TD15070-XX | (W) 150*(H)70 mm |
**The length(300-3000mm) can be freely customized per your request.**
**We also have other sizes, please feel free to check with sales.**
Applications:
1, Commercial spaces: Offices, retail stores, supermarkets, and showrooms (for uniform illumination of workstations, product displays, and aisles).
2, Industrial facilities: Factories, warehouses, and workshops (for bright, glare-free lighting to improve operational safety).
3, Residential areas: Kitchens, closets, living rooms, and hallways (as under-cabinet lights, strip lights, or ceiling-mounted main lights).
4, Public venues: Schools, hospitals, libraries, and subway stations (for energy-efficient, low-maintenance lighting solutions).
