LED wall washer projection lamp W186

This serial product actually we can call led linear projection lamps, which have the bigger power for the decoration of big building.

Send Inquiry
Description

Description

Product Features & Advantage:

This serial products actually we can call led linear projection lamps, which have the bigger power for the decoration of big building.
1, High brightness, uniform light distribution, vivid color rendering (CRI ≥ 80/90).
2, Dimmable, color-changing (RGB/RGBW) options, compatible with smart systems.
3, IP65/IP67 waterproof rating, corrosion-resistant aluminum housing, suitable for indoor/outdoor use.
4, With adjustable brackets, quick mounting for walls, buildings, landscapes.
5, No UV/IR radiation, mercury-free, low heat emission, green lighting solution.
6, Effective projection distance is 20-50m.

Product Details:

General data General Material Aluminum Housing+Tempered glass
Finish black; grey
Electrical Light efficacy 120lm/w; 130-150lm/w (optional)
Input voltage AC100-240V/DC24V
Optical CCT 2700-7000K /R/G/B/RGB
Led type Cree 3535
CRI >80/90
Beam angle 20°/30°/45°/60°
SDCM <3
Function Dimmable No dimming/DALI ; 0/1-10V & Triac
Other /
Durability IP grade IP65
Operating Temperature 一20°C ~ +50°C
Lifespan >50,000H(L90,Tc=55°C)
Warranty 3/5 years

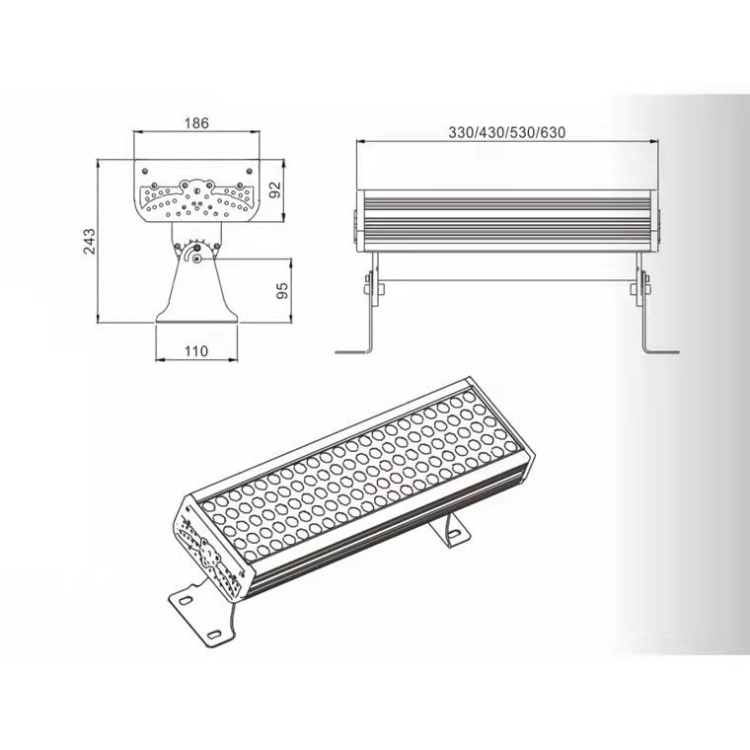

Model Power Size(mm) Carton Size Gross weight
WK-PXQ-80W 80W (L)330mm* (W) 186mm 385*230*235mm 6.5 kgs
WK-PXQ-120W 120W (L)430mm* (W) 186mm 485*230*235mm 8.1 kgs
WK-PXQ-150W 150W (L)530mm* (W) 186mm 585*230*235mm 9.8 kgs
WK-PXQ-200W
/240W
200W
/240W
(L)630mm* (W) 186mm 685*230*235mm 11.5 kgs

Applications:

1, Architectural Facades
2, Landscapes
3, Commercial Venues
4, Public Spaces
5, Events & Entertainment
6, Industrial/Municipal Areas
