Description
Product Features & Advantage:
This serial products has slim structure, one by one is connected for the decoration of big building.
1, High brightness, uniform light distribution, vivid color rendering (CRI ≥ 80/90).
2, Dimmable, color-changing (RGB/RGBW) options, compatible with smart systems.
3, IP65/IP67 waterproof rating, corrosion-resistant aluminum housing, suitable for indoor/outdoor use.

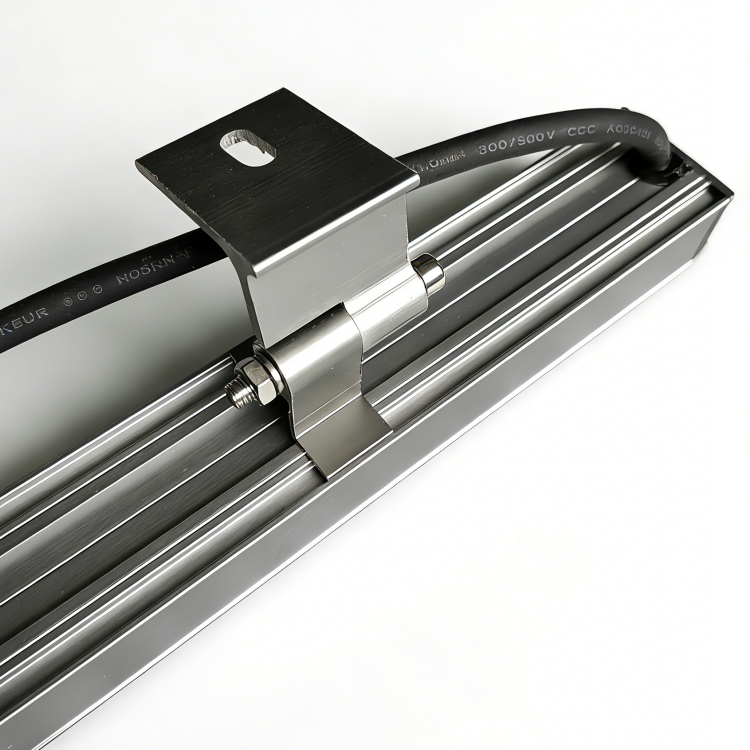

4, With adjustable brackets, quick mounting for walls, buildings, landscapes.
5, No UV/IR radiation, mercury-free, low heat emission, green lighting solution.
6, Effective projection distance is 5-10m.
Product details:
| General data | General | Material | Aluminum Housing+Tempered glass |
| Finish | black; grey | ||
| Electrical | Light efficacy | 120lm/w; 130-150lm/w (optional) | |
| Input voltage | DC24V | ||
| Optical | CCT | 2700-7000K /R/G/B/RGB | |
| Led type | Osram chip | ||
| CRI | >80/90 | ||
| Beam angle | 5°/10°/24°/30°/45°/60° | ||
| SDCM | <3 | ||
| Function | Dimmable | No dimming/DALI ; 0/1-10V & Triac | |
| Other | / | ||
| Durability | IP grade | IP65 | |
| Operating Temperature | 一20°C ~ +50°C | ||
| Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3/5 years |
| Model | Power | Size(mm) | Carton Size | Gross weight | |
| WK-T1XQ-12W | 12W | W36*H24*L1000mm | 104*24*23 cm | 12.4 -13.1 kgs | |
| WK-T1XQ-14W | 14W | ||||
| WK-T1XQ-18W | 18W | ||||
| WK-T1XQ-24W | 24W |
Applications:
1, Architectural Facades
2, Landscapes
3, Commercial Venues
4, Public Spaces
5, Events & Entertainment
6, Industrial/Municipal Areas
