Description
Product Features and advantage:
1, All- in – one design : Integrated driver & housing, no extra accessories needed, easy to install.
2, Direct replacement for traditional T5, high luminous efficacy.
3, Energy – saving, low power consumption.
4, Instant start, no flicker.
5, Wide beam angle, uniform light.

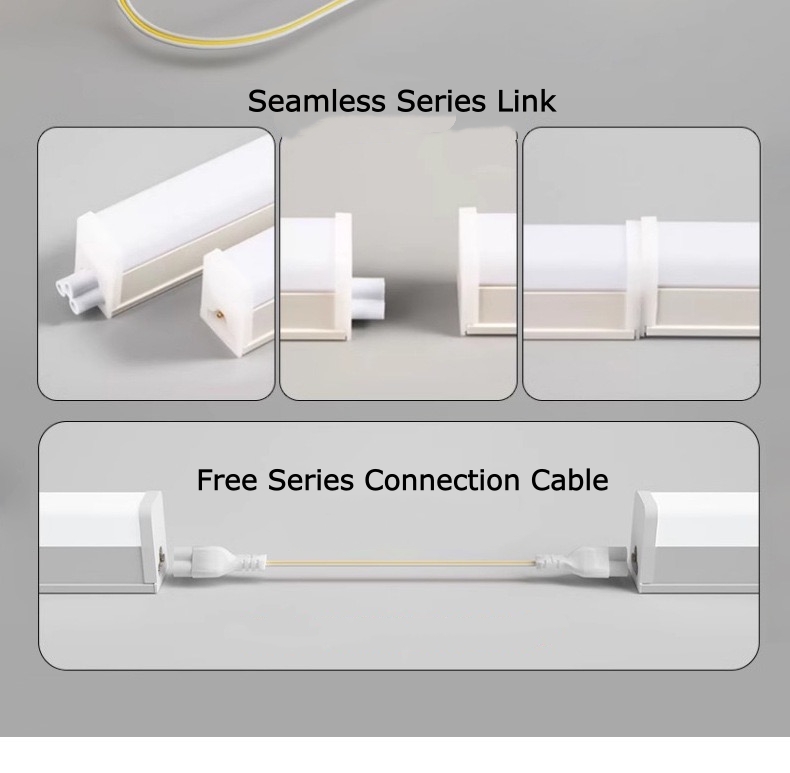

6, Retrofit easy, no rewiring needed.
7, Suitable for commercial/residential use.
Product Details:
| General data | General | Material | Aluminum Housing+PC cover |
| Finish | silver | ||
| Electrical | Light efficacy | 110lm/w; 120-140lm/w (optional) | |
| Input voltage | AC85-265V/ AC110-130V | ||
| Optical | CCT | 2700-7000K /R/G/B | |
| Led type | 2835 smd (SamSung) | ||
| CRI | >80/90 | ||
| Beam angle | 130° | ||
| SDCM | <3 | ||
| Function | Dimmable | No dimming/DALI ; 0/1-10V & Triac | |
| Other | emergency or sensor (per request) | ||
| Durability | IP grade | IP20 | |
| Operating Temperature | 一20°C ~ +40°C | ||
| Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3/5 years |
| Model | Power | Size(mm) |
| WK-T5-300mm | 4W | (L)300* (W) 23*(H)34 |
| WK-T5-600mm | 8W | (L)600* (W) 23*(H)34 |
| WK-T5-900mm | 10W | (L)900* (W) 23*(H)34 |
| WK-T5-1000mm | 12W | (L)1000* (W) 23*(H)34 |
| WK-T5-1200mm | 14W | (L)1200* (W) 23*(H)34 |
Applications:
1, Office & commercial workspace lighting
2, Retail store display & shelf lighting
3, School & classroom illumination
4, Hospital & healthcare facility lighting
5, Residential kitchen & closet lighting
6, Warehouse & workshop general lighting
7, Supermarket & grocery store aisle lighting
7, Garage & basement ambient lighting
