Description
Product Features and advantage:

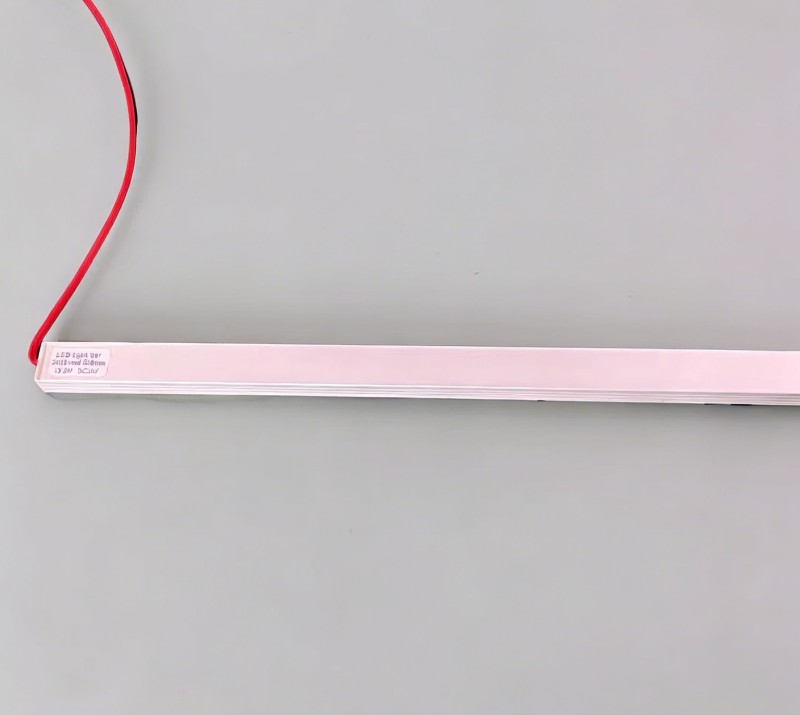

This IR940NM linear light mainly used with infrared cameras.

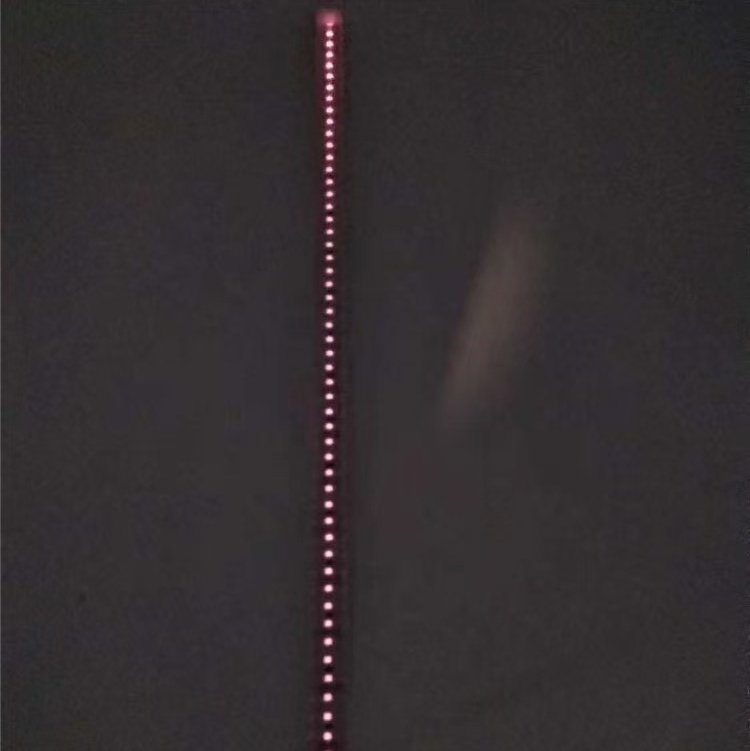

1, 940nm near-infrared, eye-invisible (no red glow leakage).
2, LED-based, energy-saving & long lifespan (≥50,000 hrs).
3, also can make 850nm, ideal for covert security, privacy monitoring.
4, DC24V low voltage , safe and low maintance cost.
5, can group linears to a sheet as per your application area.
Product Details:
| General data | General | Material | Aluminum Housing+PC cover |
| Finish | silver | ||
| Electrical | Light efficacy | / | |
| Input voltage | DC 24V | ||
| Optical | CCT | 940 NM | |
| Led type | 2835 smd | ||
| CRI | / | ||
| Beam angle | 120° | ||
| SDCM | <3 | ||
| Function | Dimmable | No dimming | |
| Other | / | ||
| Durability | IP grade | IP20 | |
| Operating Temperature | 一20°C ~ +40°C | ||
| Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3years |
| Model | Power | Size(mm) | Remark | |||
| WK-T940NM | 13.2W | 875(L)*15(W)*10(H) mm | customized product for special application. | |||
Applications:
1, Covert Surveillance
2, Biometric Recognition
3, Machine Vision
4, Medical Sensing
5, Auto/Robot Navigation
6, Smart Home Sensing
